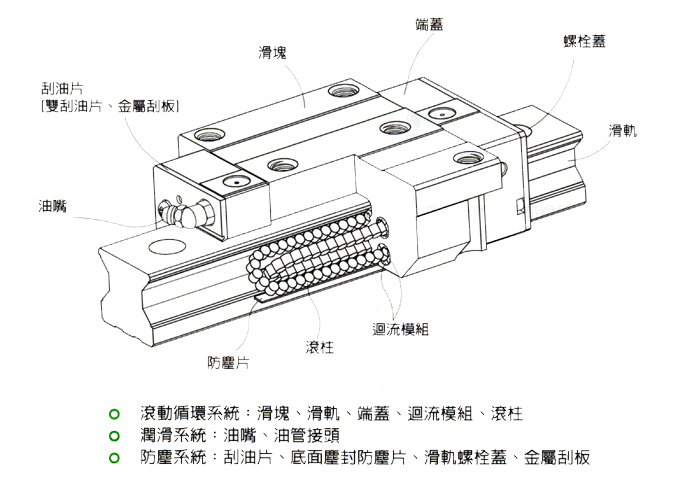

滾柱導軌是為實現超高剛性與超重負荷能力而設計的，通過滾動體與滑軌和滑塊的線性接觸方式，讓滾動體在承受高負荷時僅僅形成微量的彈性變形，同時由于45度接觸角
設計，讓整體線性滑軌達到四方向高剛性與高負荷能力。通過高剛性的實現，可大幅提升加工精度。由于超重負荷的能力使導軌的壽命延長。非常適合高速自動化產業機械
及高剛性需求的設備使用。

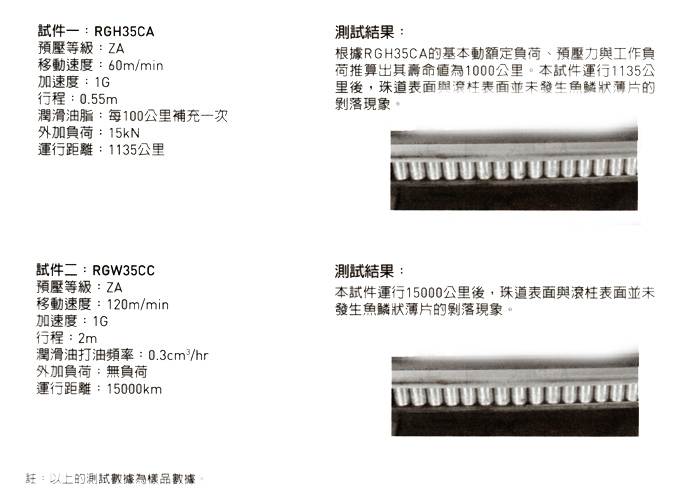

測試實例

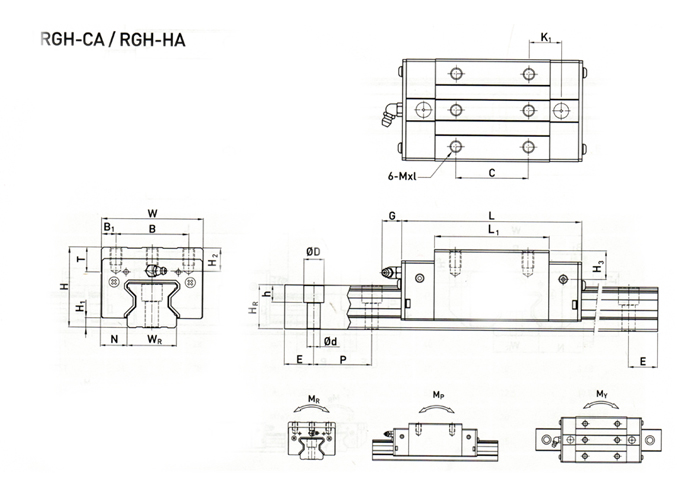

型號 |
組件 |
滑塊尺寸 |
滑軌尺寸 |
滑軌固 |
基本動額 |
基本靜額 |
容許力矩 |
重量 |
|||||||||||||||||||||
（mm) |
螺栓尺 |
定載荷 |
定載荷 |
MR |
MP |
MY |
滑塊 |
||||||||||||||||||||||
H |
H1 |
N |
W |
B |
B1 |
C |
L1 |
L |
K1 |
G |
Mxl |
T |
H2 |
H3 |
WR |
HR |
D |
h |
d |
P |
E |
(mm） |
C（kN) |
C0（kN) |
kN-m |
kN-m |
kN-m |
Kg |
|
| RGH25CA | 40 | 5.5 | 12.5 | 48 | 35 | 6.5 | 35 | 64.5 | 97.9 | 20.75 | 12 | M6x8 | 9.5 | 10.20 | 10 | 23 | 23.6 | 11 | 9 | 7.0 | 30 | 20 | M6x20 | 27.7 | 57.1 | 0.758 | 0.605 | 0.605 | 0.55 |
| RGH25HA | 50 | 81 | 114.4 | 21.5 | 33.9 | 73.4 | 0.975 | 0.991 | 0.991 | 0.7 | |||||||||||||||||||
| RGH30CA | 45 | 6 | 16 | 60 | 40 | 10 | 40 | 71 | 109.8 | 23.5 | 12 | M8x10 | 9.5 | 9.50 | 14 | 28 | 28 | 14 | 12 | 9.0 | 40 | 20 | M8x25 | 39.1 | 82.1 | 1.445 | 1.06 | 1.06 | 0.82 |
| RGH30HA | 60 | 93 | 131.8 | 24.5 | 48.1 | 105 | 1.846 | 1.712 | 1.712 | 1.07 | |||||||||||||||||||
| RGH35CA | 55 | 6.5 | 18 | 70 | 50 | 10 | 50 | 79 | 124.0 | 22.5 | 12 | M8x12 | 12 | 16.00 | 19.6 | 34 | 30.2 | 14 | 12.0 | 9.0 | 40 | 20 | M8x25 | 57.9 | 105.2 | 2.17 | 1.44 | 1.44 | 1.43 |
| RGH35HA | 72 | 106.5 | 151.5 | 25.25 | 73.1 | 142 | 2.93 | 2.6 | 2.6 | 1.86 | |||||||||||||||||||
| RGH45CA | 70 | 8 | 20.5 | 86 | 60 | 13 | 60 | 106 | 153.2 | 31 | 12.9 | M10x17 | 16 | 20.00 | 24 | 45 | 38 | 20 | 17 | 14 | 52.5 | 22.5 | M12x35 | 92.6 | 178.8 | 4.52 | 3.05 | 3.05 | 2.97 |
| RGH45HA | 80 | 139.8 | 187.0 | 37.9 | 116 | 230.9 | 6.33 | 5.47 | 5.47 | 3.97 | |||||||||||||||||||
| RGH55CA | 80 | 10 | 23.5 | 100 | 75 | 12.5 | 75 | 125.5 | 183.7 | 37.75 | 12.9 | M12x18 | 17.5 | 22 | 28 | 53 | 44 | 23 | 20.0 | 16 | 60 | 30 | M14x45 | 130.5 | 252 | 8.01 | 5.4 | 5.4 | 4.62 |
| RGH55HA | 95 | 173.8 | 232.0 | 51.9 | 167.8 | 348 | 11.15 | 10.25 | 10.25 | 6.4 | |||||||||||||||||||
| RGH65CA | 90 | 12 | 31.5 | 126 | 76 | 25 | 70 | 160 | 232.0 | 60.8 | 12.9 | M16x20 | 25 | 15 | 15 | 63 | 53 | 26 | 22.0 | 18 | 75 | 35 | M16x50 | 213 | 411.6 | 16.2 | 11.59 | 11.59 | 8.33 |
| RGH65HA | 120 | 223 | 295.0 | 67.3 | 275.3 | 572.7 | 22.55 | 22.17 | 22.17 | 11.6 | |||||||||||||||||||

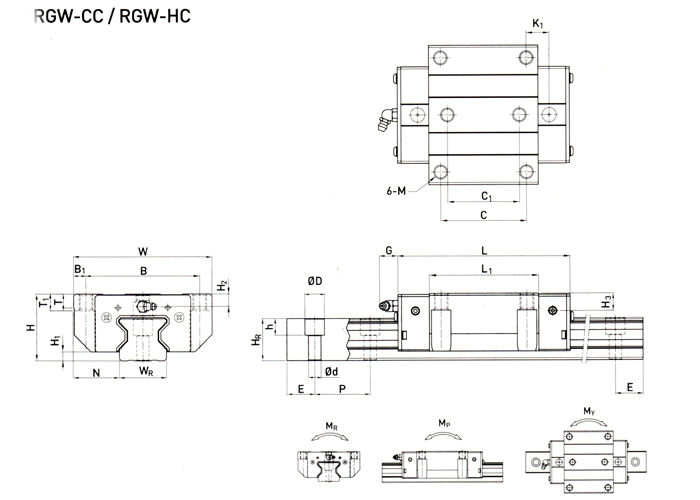

型號 |
組件 |
滑塊尺寸 |
滑軌尺寸 |
滑軌固 |
基本動額 |
基本靜額 |
容許力矩 |
|||||||||||||||||||||||
（mm) |
螺栓尺 |
定載荷 |
定載荷 |
MR |
MP |
MY |
||||||||||||||||||||||||
H |
H1 |
N |
W |
B |
B1 |
C |
C1 |
L1 |
L |
K1 |
G |
M |
T |
T1 |
H2 |
H3 |
WR |
HR |
D |
h |
d |
P |
E |
(mm） |
C（kN) |
C0（kN) |
kN-m |
kN-m |
kN-m |
|
| RGW25CC | 36 | 5.5 | 23.5 | 70 | 57 | 6.5 | 45 | 40 | 64.5 | 97.9 | 15.75 | 12 | M8 | 9.5 | 10 | 6.20 | 6.00 | 23 | 23.6 | 11 | 9 | 7.0 | 30 | 20 | M6x20 | 27.7 | 57.1 | 0.758 | 0.605 | 0.605 |
| RGW25HC | 81 | 114.4 | 24.00 | 33.9 | 73.4 | 0.975 | 0.991 | 0.991 | ||||||||||||||||||||||
| RGW30CC | 42 | 6 | 31 | 90 | 72 | 9 | 52 | 44 | 71 | 109.8 | 17.50 | 12 | M10 | 9.5 | 10 | 6.50 | 10.80 | 28 | 28 | 14 | 12 | 9.0 | 40 | 20 | M8x25 | 39.1 | 82.1 | 1.445 | 1.06 | 1.06 |
| RGW30HC | 93 | 131.8 | 28.50 | 48.1 | 105 | 1.846 | 1.712 | 1.712 | ||||||||||||||||||||||
| RGW35CC | 48 | 6.5 | 33 | 100 | 82 | 9 | 62 | 52 | 79 | 124.0 | 16.50 | 12 | M10 | 12 | 13 | 9.00 | 12.60 | 34 | 30.2 | 14 | 12.0 | 9.0 | 40 | 20 | M8x25 | 57.9 | 105.2 | 2.17 | 1.44 | 1.44 |
| RGW35HC | 106.5 | 151.5 | 30.25 | 73.1 | 142 | 2.93 | 2.6 | 2.6 | ||||||||||||||||||||||
| RGW45CC | 60 | 8 | 37.5 | 120 | 100 | 10 | 80 | 60 | 106 | 153.2 | 21.00 | 12.9 | M12 | 14 | 15 | 10.00 | 14.00 | 45 | 38 | 20 | 17 | 14 | 52.5 | 22.5 | M12x35 | 92.6 | 178.8 | 4.52 | 3.05 | 3.05 |
| RGW45HC | 139.8 | 187.0 | 37.90 | 116 | 230.9 | 6.33 | 5.47 | 5.47 | ||||||||||||||||||||||
| RGW55CC | 70 | 10 | 43.5 | 140 | 116 | 12 | 95 | 70 | 125.5 | 183.7 | 27.75 | 12.9 | M14 | 16 | 17 | 12 | 17.50 | 53 | 44 | 23 | 20.0 | 16 | 60 | 30 | M14x45 | 130.5 | 252 | 8.01 | 5.4 | 5.4 |
| RGW55HC | 173.8 | 232.0 | 51.90 | 167.8 | 348 | 11.15 | 10.25 | 10.25 | ||||||||||||||||||||||
| RGW65CC | 90 | 12 | 53.5 | 170 | 142 | 14 | 110 | 82 | 160 | 232.0 | 40.80 | 12.9 | M16 | 22 | 23 | 15 | 15.00 | 63 | 53 | 26 | 22.0 | 18 | 75 | 35 | M16x50 | 213 | 411.6 | 16.2 | 11.59 | 11.59 |
| RGW65HC | 223 | 295.0 | 72.30 | 275.3 | 572.7 | 22.55 | 22.17 | 22.17 | ||||||||||||||||||||||
